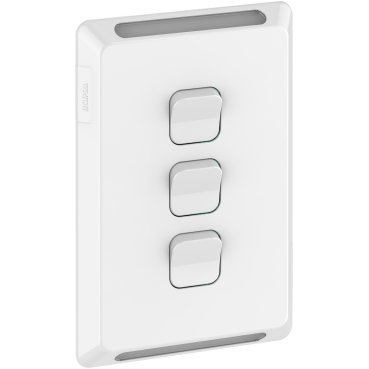

Pro Series Gridplate and Skin 3 Gang, Vertical/Horizontal Mount | Extra White
Item Number: P3043VH-XW
Close
Featuring bevelled edges to deflect impact and a seamless gloss finish that doesn't attract dirt, the Pro Series 3 Gang Switch Grid and Skin has been designed for commercial buildings. The Grid and Skin is suitable for either vertical or horizontal installation.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | cover frame |
| Colour tint | white (XW) |
| Product destination | switch |
| Surface finish | glossy |
Physical
| Range compatibility | Pro Series switch |
|---|---|
| Device mounting | flush |
| Number of rocker | 3 |
| Provided equipment |
|
| Installation direction | vertical |
| Fixing mode | clip-on |
| Height | 116 mm |
| Width | 78 mm |
| Depth | 9 mm |
| Ambient air temperature for storage | 0...60 °C |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
