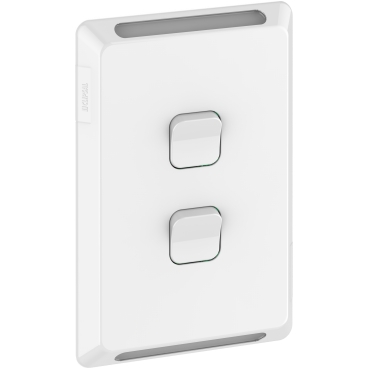

Pro Series Gridplate and Skin 2 Gang, Vertical/Horizontal Mount

Pro Series Gridplate and Skin 2 Gang, Vertical/Horizontal Mount | Extra Vivid White

Item Number: P3042VH-XW

With bevelled edges to deflect impacts, and clean lines that blend into any commercial environment, the Pro Series 2 Gang Switch Grid and Skin is both good looking and robust. The grid features panels where identification labels can be placed, and the skin has windows so you can easily view these labels.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height116 mm

Depth icon

Depth9 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

cover frame

Colour tint

white (XW)

Surface finish

glossy

Physical

Range compatibility

Pro Series

Installation direction

vertical

Number of gangs

2 gangs

Height

116 mm

Width

78 mm

Depth

9 mm

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Material

Device composition

fixing frame

Material

PC (polycarbonate)|ABS (acrylonitrile butadiene-styrene)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

97.53 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

4.082325504880001
