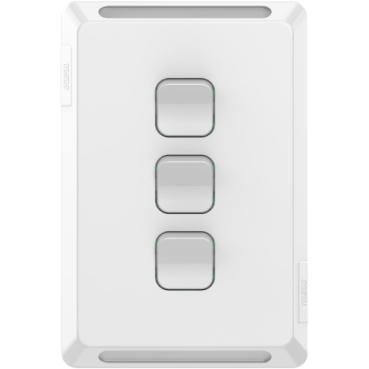

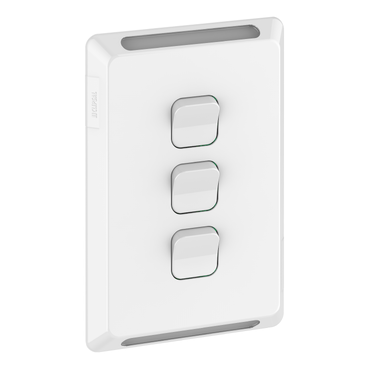

Pro Series Flush Switch Vertical Mount, 3 Gang, 1-Way/2-Way, 230/240V, 20A, /16AX | Extra White
Item Number: P3043VA-XW
Close
Suitable for one or two way switching, the Pro Series 3 Gang switch is rated 20A/16AX, 230/240V. The Pro Series has been designed for commercial buildings and public areas and includes features such as a seamless, gloss finish for easy cleaning, as well as bevelled edges to deflect impacts.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | lighting |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 3 |
|---|---|
| Switch function | 1/2-way |
| Installation direction | vertical |
| Quantity per set | set of 10 |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 20 A/16 AX |
| Connections - terminals | screw terminals |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 116 mm |
| Depth | 38 mm |
| Net weight | 97 g |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1205006EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
ZIP

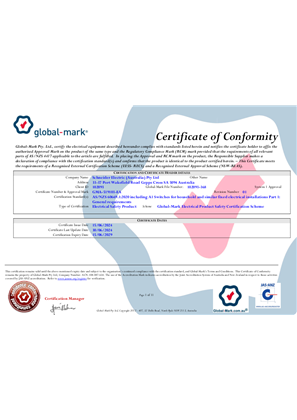

Schneider Electric, 40M and 381M switch mechanism, Certificate, RCM, Global Mark Pty LTD
VERSION
2.1
DATE
19 May 2026
REVISION
2.1
DOWNLOAD (ZIP) 288.5 KB
ZIP

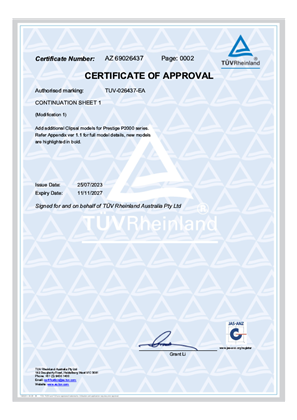

Iconic 40M switch series, Certificate, RCM, TUV Rheinland Aust. Pty. Ltd.
VERSION
1.1
DATE
23 Feb 2024
REVISION
1.1
DOWNLOAD (ZIP) 1.5 MB
ZIP

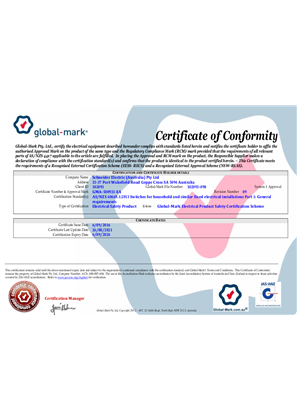

RCM Certificate of Approval (Conformity)
VERSION
9.0
DATE
23 Feb 2024
REVISION
9.0
DOWNLOAD (ZIP) 235.7 KB
