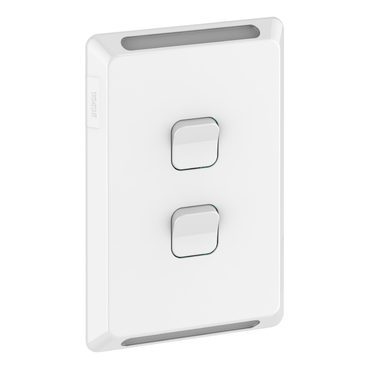

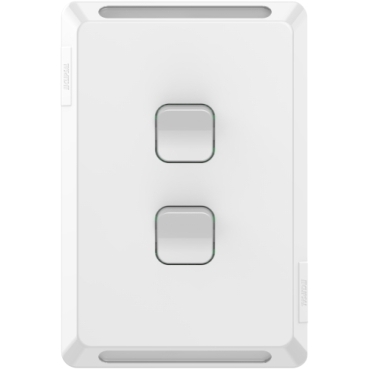

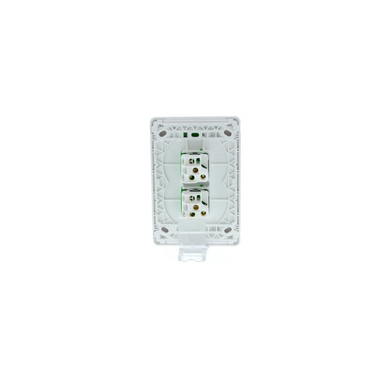

Pro Series Flush Switch Vertical Mount, 2 Gang, 1-Way/2-Way, 230/240V 20A, /16AX | Extra White
Item Number: P3042VA-XW
Close
When one or two way switching is desired, the Pro Series 2 Gang 20A/16AX, 230/240V Vertical Switch is an easy choice. Aesthetically pleasing, the fresh clean lines of the switch and glossy finish repel dirt, so the switch stays looking good for longer.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | lighting |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 2 |
|---|---|
| Switch function | 1/2-way |
| Installation direction | vertical |
| Quantity per set | set of 10 |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 20 A/16 AX |
| Connections - terminals | screw terminals |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 116 mm |
| Depth | 38 mm |
| Net weight | 82 g |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
