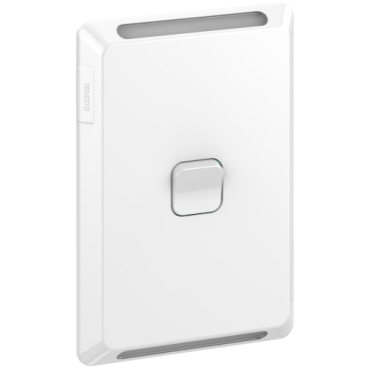

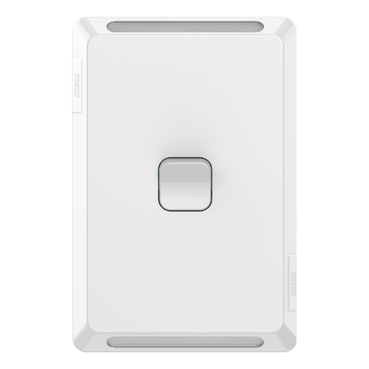

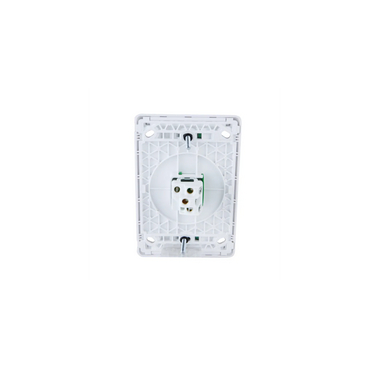

Pro Series Flush Switch Vertical Mount, 1 Gang, 1-Way/2-Way, 230/240V 20A, /16AX | Extra White
Item Number: P3041VA-XW
Close
Rated 20A/16AX and 230/240V, the Pro Series 1 Gang Vertical switch can be configured for two way switching with one switch placed at either end of a corridor or large area. The Pro Series has been designed with commercial buildings in mind, with reliability and robustness a key attribute.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | lighting |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 1/2-way |
| Installation direction | vertical |
| Quantity per set | set of 10 |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 20 A/16 AX |
| Connections - terminals | screw terminals |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 116 mm |
| Depth | 38 mm |
| Net weight | 67 g |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
