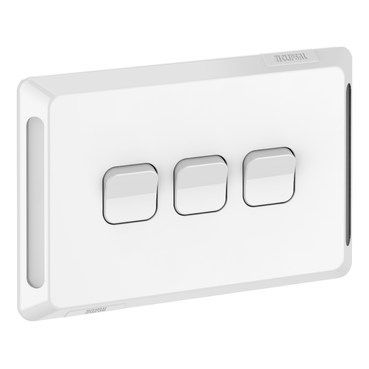

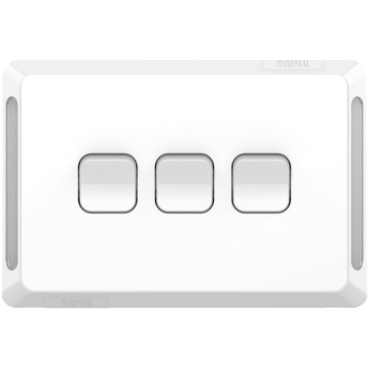

Pro Series, Flush Switch, Horizontal Mount, 3 Gang, 1-Way/2-Way, 250V, 20A, /16AX

Home ProductsPower Points and SwitchesPro SeriesFlush Switch

Pro Series, Flush Switch, Horizontal Mount, 3 Gang, 1-Way/2-Way, 250V, 20A, /16AX XW

Item Number: P3043HA-XW

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switch

Device application

lighting

Colour tint

white

Surface finish

glossy

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 10

Device presentation

complete product

Control type

rocker

Device mounting

wall

Installation direction

horizontal

Switch function

1-pole 1/2-way

Number of rocker

3

Rated current

20 A/16 AX

[ue] rated operational voltage

230/240 V

Fixing mode

by screws

Connections - terminals

screw terminal

Height

78 mm

Width

116 mm

Depth

38 mm

Net weight

0.076 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Product certifications

RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Material

Material

PC (polycarbonate)|PP (polypropylene)|ABS (acrylonitrile butadiene-styrene)|POM (polyoxymethylene)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

79.53 g
Show all specifications
