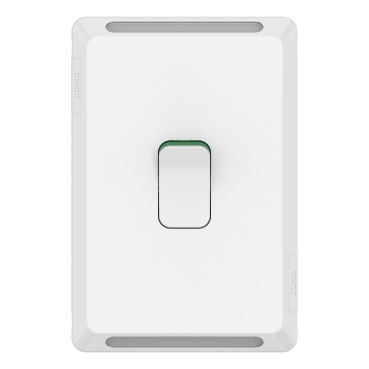

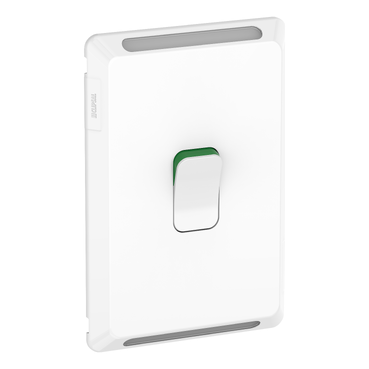

Pro Series Cooking Appliance Isolator Switch Horizontal/Vertical Mount Single Pole 250V, 45A

Home ProductsPower Points and SwitchesPro SeriesCooking Appliance Isolator Switch

Pro Series Cooking Appliance Isolator Switch Horizontal/Vertical Mount Single Pole 250V, 45A | Extra White

Item Number: P3041-45-XW

For commercial spaces where ovens and cookers are fitted out a Pro Series Cooker Switch is a must. A requirement when an electric cooktop is installed, the Pro Series Cooker Switch can be installed either vertically or horizontally. The switch is rated to 45A, 250V.

Datasheet

Product Dimensions

Width icon

Width78 mm

Height icon

Height116 mm

Depth icon

Depth39 mm

Barcode

Qty UoM EAN Colour
-
-
-
kitchen

Features

  • Switch assembly pole 45 A 250 V
  • Marked with 'cooker' on rocker
  • Integrated locking bar minimises the possibility of module pushbacks
  • Secure skins
  • No screws needed
  • Clear window protects the circuit identification labels

Specifications

Design

Product brand

Clipsal

Range

Pro Series

Product or component type

switch

Device application

cooker

Aesthetic name

Iconic

Colour tint

extra white

Surface treatment

untreated

Surface finish

glossy

Physical

Number of rocker

1

Switch function

1-pole

Installation direction

horizontal/vertical

Quantity per set

set of 5

Device presentation

complete product

Device mounting

flush

Actuator

rocker

[ue] rated operational voltage

250 V

Rated current

45 A

Connections - terminals

screw terminals

Fixing mode

by screws

Marking

cooker

Width

78 mm

Height

116 mm

Depth

39 mm

Net weight

50 g

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2309004EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Technology type

electromechanical

Network type

AC

Main colour tint

extra white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.8 cm

Package 1 width

7.8 cm

Package 1 length

11.6 cm

Package 1 weight

53.53 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.0433989625641027

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
The Clipsal Pro Series range

The Pro Series range

The Pro Series range is practical and functional as it is manufactured with quality materials to withstand the impact and everyday knocks of public places. Its clean and fresh edges work to deflect impacts and dirt.

Switches offer standard and electronic modules. Sockets are available in several variants, and horizontal and vertical orientations.

Includes permanent circuit identification, integrated windows in the skins and secured skins that are removable with a tool.

Electronic functions include Bluetooth connectivity, connection to the Wiser Room app, USB options, timers, PIR motion sensors and C-Bus modules, makes building management simple.
