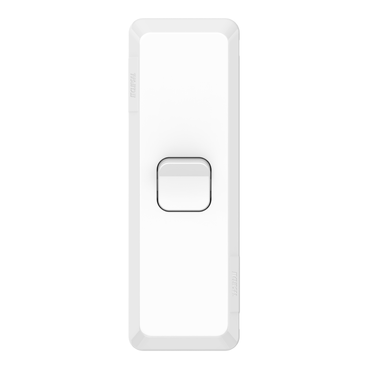

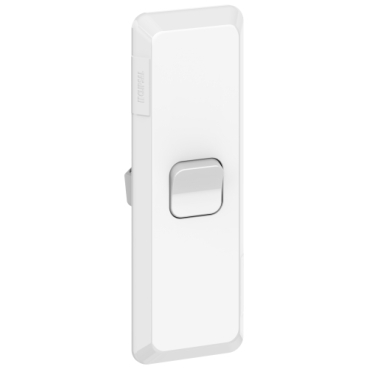

Pro Series Architrave Switch Vertical Mount, 1 Gang, 230/240V, 20A, 16AX | Extra White
Item Number: P3041A-XW
For slim areas where switching is needed, the Pro Series 1 Gang Architrave Switch fits perfectly. The 16AX, 230/240V switch is 38mm wide and can be configured for one or two way switching, making it suitable to use at either end of a corridor or large room.
Features
- Architrave switch assembly 20 A - 16 AX, 250 V
- Perfect size to be mounted onto door frames
- Integrated locking bar minimises the possibility of module pushbacks
- Secure skins
- No screws needed
- Clear window protects the circuit identification labels
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | lighting |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
| Surface finish | glossy |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 1/2-way |
| Installation direction | vertical |
| Quantity per set | set of 10 |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 10 AX |
| Connections - terminals | screw terminals |
| Clamping connection capacity |
|
| Fixing mode | by screws |
| Width | 38 mm |
| Height | 113 mm |
| Depth | 40 mm |
| Net weight | 46 g |
| Relative humidity | 10...95 % |
| Ambient air temperature for operation | 0...45 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Schneider Electric, 40M and 381M switch mechanism, Certificate, RCM, Global Mark Pty LTD
VERSION
2.1
DATE
19 May 2026
REVISION
2.1
Iconic 40M switch series, Certificate, RCM, TUV Rheinland Aust. Pty. Ltd.
VERSION
1.1
DATE
23 Feb 2024
REVISION
1.1
RCM Certificate of Approval (Conformity)
VERSION
9.0
DATE
23 Feb 2024
REVISION
9.0
P3041A-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P3041A-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P3041A-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P3041A-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P3041A-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P3041A-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Pro Series range
The Pro Series range is practical and functional as it is manufactured with quality materials to withstand the impact and everyday knocks of public places. Its clean and fresh edges work to deflect impacts and dirt.
Switches offer standard and electronic modules. Sockets are available in several variants, and horizontal and vertical orientations.
Includes permanent circuit identification, integrated windows in the skins and secured skins that are removable with a tool.
Electronic functions include Bluetooth connectivity, connection to the Wiser Room app, USB options, timers, PIR motion sensors and C-Bus modules, makes building management simple.
