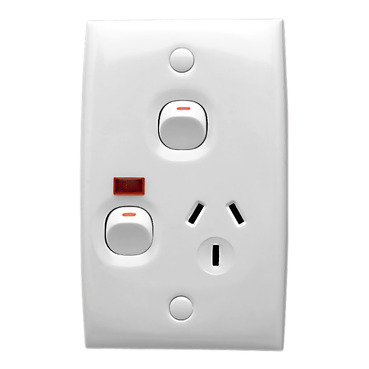

Modena/Strato, Switched Socket, Single, Vertical Mount with Extra Switch Neon

Modena/Strato, Switched Socket, Single, Vertical Mount with Extra Switch Neon WE

Item Number: 15VXN-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

indicator light

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

14 mm

Length

115 mm

Width

73 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133|AS/NZS 3000:approval number S/1

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.4 cm

Package 1 width

7.3 cm

Package 1 length

11.5 cm

Package 1 weight

91 g
