Modena/Strato Single Switch Socket Outlet 250V, 10A, Removable Extra Switch | Black
Item Number: M8015XL-BK
Datasheet
Close
Specifications
Design
| Range of product | PDL 800 Modena Series |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Local signalling | indicator light |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 9 mm |
| Length | 124 mm |
| Width | 85 mm |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Installation Instruction
-

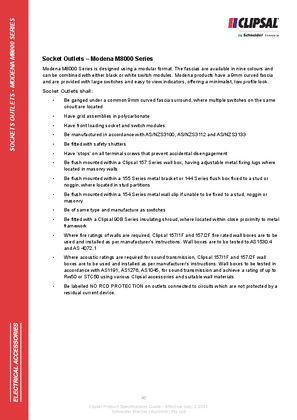

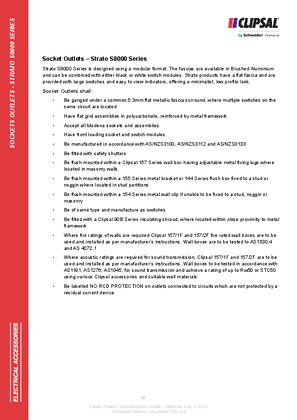

Specification Guide
-
Declaration of Conformity (Sustainability)
ZIP
Installation Instructions - F2321/01 - Modena 8000 Series, 23057
VERSION
1.0
DATE
02 Nov 2023
REVISION
1.0
DOWNLOAD (ZIP) 110.5 KB
ZIP
Installation Instructions - F2351/01 - Modena 8000 Series Vertical , 23055
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 110.2 KB
ZIP
Instr. F2321 M8081 SERIES
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 845.3 KB
ZIP
M8015XL-BK EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
M8015XL-BK EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
M8015XL-WE EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
ZIP
M8015XL-WE EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
