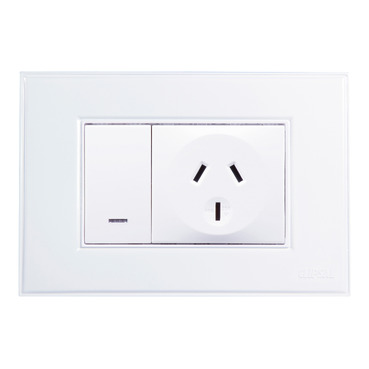

Modena/Strato Power Outlet Single Socket, Rocker Switched, 250V AC 10A - with Blue LED | White Electric
Item Number: S8015L-WE
Datasheet
Specifications
Design
| Range of product | Strato 8000 Series |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | indicator light |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 15 A |
| Depth | 94.5 mm |
| Length | 124 mm |
| Width | 85 mm |
| Fixing center | 84 mm |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
