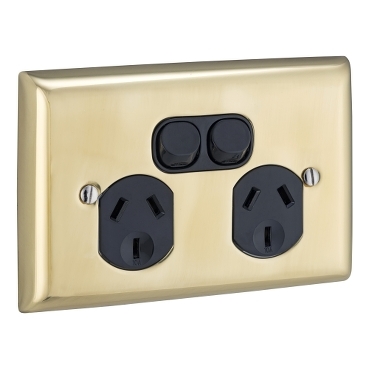

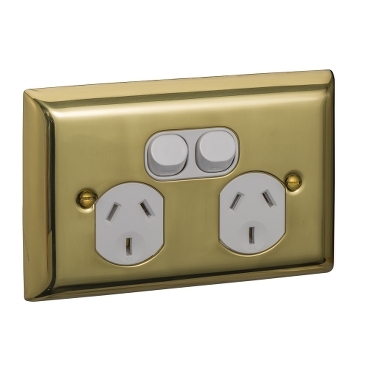

Metal Plate Series, Twin Switch Socket Outlet, 250V, 10A, A Style, Deep Curve Plate

Home ProductsPower Points and SwitchesMetal Plate SeriesTwin Switch Socket Outlet, 250V, 10A, A Style, Deep Curve Plate

Metal Plate Series, Twin Switch Socket Outlet, 250V, 10A, A Style, Deep Curve Plate WE

Item Number: BA25A-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Metal Plate

Product or component type

switched socket

Product brand

Clipsal

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

switch|rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Length

130 mm

Width

86 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

brass

Others

Commercial status history

SESA65410 | Tue Mar 19 00:20:00 EDT 2024 | From Import Local | From 19 to 18

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

8.6 cm

Package 1 length

13 cm

Package 1 weight

0.2 kg

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

117 cm

Package 2 width

102 cm

Package 2 length

138 cm

Package 2 weight

1 kg

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

157 cm

Package 3 width

305 cm

Package 3 length

445 cm

Package 3 weight

10 kg
