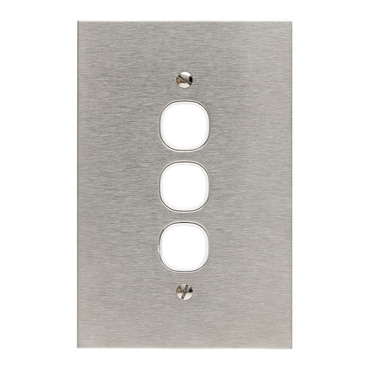

Metal Plate Series Switch Grid Plate and Cover 3 Gang, BSL Style, Less Mechanism, Over Size | White Electric
Item Number: BSL33VH-WE
Datasheet
Close
Specifications
Design
| Range of product | Metal Plate |
|---|---|
| Product brand | Clipsal |
| Surface treatment | stainless steel |
| Product destination | switch |
Physical
| Fixing mode | by screws |
|---|---|
| Marking | without marking |
| Mounting position | horizontal and vertical |
| Fixing center | 84 mm |
| Length | 130 mm |
| Width | 85 mm |
| Depth | 30 mm |
| Number of gangs | 3 gangs |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
