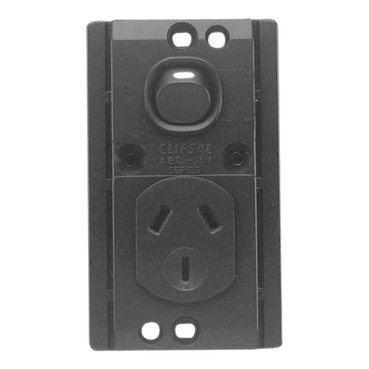

Metal Plate Series Socket Outlet Single Switch Mechanism 250V, 10A, A Style Deep Curved Plate | White Electric

Item Number: A15VM-WE

White Electric 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554251529	WE
10	CRT	9311554136871	WE
100	CAR	19311554251533	WE

Specifications

Design

Range of product	Metal Plate
Product or component type	switched socket
Product brand	Clipsal

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	switch rocker
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	vertical
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	28 mm
Length	105 mm
Width	55 mm
Fixing center	84 mm
Standards	AS/NZS 3100 AS/NZS 3112 AS/NZS 3133:approval number S/1
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP111024EN
Eu rohs directive	Compliant

Material

Material	stainless steel

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.8 cm
Package 1 width	5.5 cm
Package 1 length	10.5 cm
Package 1 weight	0.168 kg
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	117 cm
Package 2 width	143 cm
Package 2 length	181 cm
Package 2 weight	1.68 kg
Unit type of package 3	CAR
Number of units in package 3	100
Package 3 height	254 cm
Package 3 width	348 cm
Package 3 length	445 cm
Package 3 weight	16.8 kg
Sustainable packaging	No
End of life manual availability	ENVEOLI110713EN
Warranty (in months)	18
