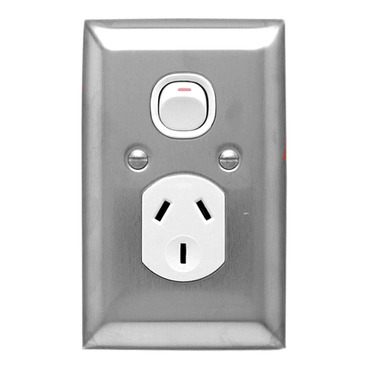

Metal Plate Series Single Switch Socket Outlet 250V, 10A, A Style Deep Curved Plate, Vertical | White Electric
Item Number: A15VA-WE
Datasheet
Close
Specifications
Design
| Range of product | Metal Plate |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | vertical |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 35 mm |
| Length | 115 mm |
| Width | 70 mm |
| Fixing center | 84 mm |
| Standards |
|
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | stainless steel |
|---|
