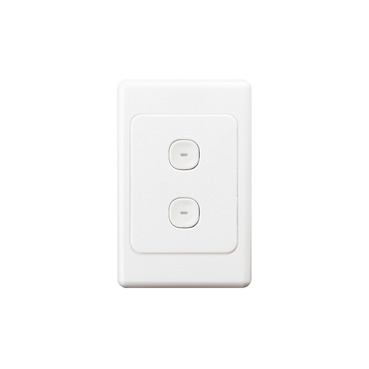

Impress Series push-button LED Switch 2 Gang Vertical Switch | White Electric
Item Number: 2032VAPBL-WE
Datasheet
Close
Specifications
Design
| Range of product |
|
|---|---|
| Product or component type | push-button |
| Product brand | Clipsal |
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Actuator | push-button |
| Local signalling | indicator light |
| Fixing mode | by screws |
| [ue] rated operational voltage | 250 V AC |
| Inrush current | 20 A |
| Depth | 30 mm |
| Width | 76 mm |
| Length | 116 mm |
| Fixing center | 84 mm |
| Mounting position | vertical |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
