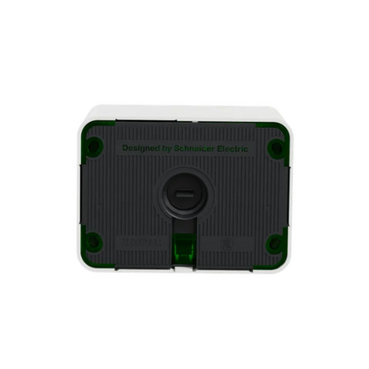

Clipsal Iconic Outdoor Single Switched Socket Outlet Horizontal, 10A, 250V

Home ProductsPower Points and SwitchesIconic OutdoorSingle Switched Socket Outlet

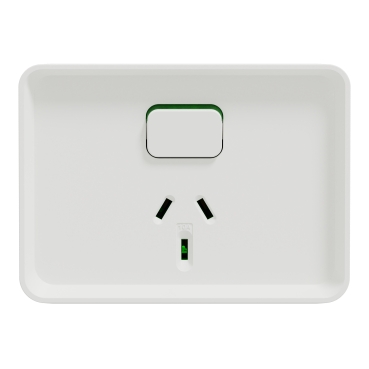

Clipsal Iconic Outdoor Single Switched Socket Outlet Horizontal, 10A, 250V | Extra White

Item Number: O3015-XW

Build your Iconic

The Clipsal Iconic Outdoor Single Switched Socket Outlet is rated 10A, 250V. Integrated shutters seal the socket apertures, ensuring the IP54 rating. It has an matt White finish which has been designed for Australian summers and winters.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width115.5 mm

Height icon

Height85 mm

Depth icon

Depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
iconic outdoor zoom in

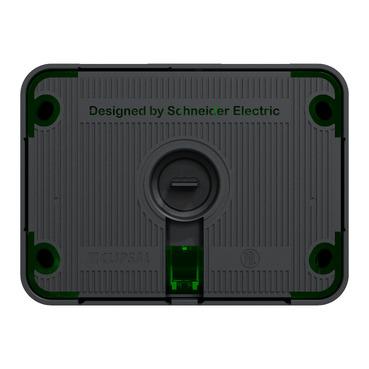

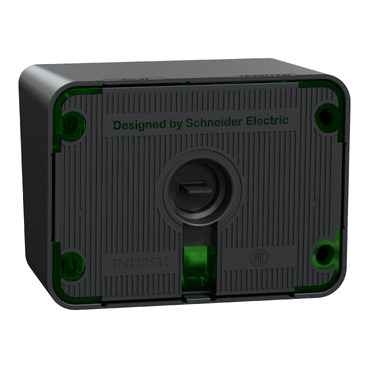

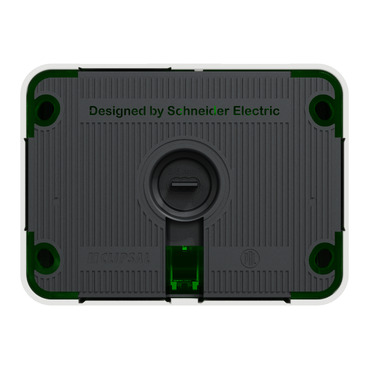

iconic outdoor backing
iconic outdoor socket exploded view
iconic outdoor zoom in
iconic outdoor backing
iconic outdoor socket exploded view

Iconic Outdoor Features

Water and dust resistant

The Iconic Outdoor range features an innovative design to ensure your outdoor switches and sockets are kept safe and secure.

Integrated shutters seal the socket apertures, preventing water ingress and ensuring an IP54 protection rating. The switches are rated IP56.

Integrated seals fix onto conduits or cables at entry points, removing the need for additional sealants, and pre-drilled mounting holes are positioned outside of the waterproof area to prevent leaks.

Iconic Outdoor Features

Faster installation

Making it faster and easier for electrical contractors to install, the Iconic Outdoor range features large, in-line terminals on the grid. The grid also features large clips, allowing it to be attached to the frame in seconds.

A full, over-moulded rubber frame prevents slipping on the wall where it is to be installed, while also absorbing inconsistencies in the wall surface.

Iconic Outdoor Features

Aesthetically pleasing

Achieving a balance between simplicity of installation and appealing good looks, the Iconic Outdoor range utilises a bi-face system, with an aesthetically pleasing, robust cover for the consumer, which protects and hides the highly technical core which has been uniquely designed for the electrician.

A hidden “press-to-release” lock allows the cover to be easily removed and replaced, so consumers can easily update the look of their Iconic Outdoor switch or outlet.

Specifications

Design

Range of product

Iconic

Product or component type

switched socket

Product brand

Clipsal

Colour code

XW

Surface finish

matt

Physical

Device presentation

complete product

Outlet poles configuration

1P + E

Control type

  • ON/OFF button
  • rocker

Pin number

3

Number of power socket outlets

1

Fixing mode

  • by screws
  • by clipping locks

Local signalling

without light indicator

Device mounting

  • surface
  • wall mounted

Mounting position

horizontal

Type of installation

outdoor

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Clamping connection capacity

  • 3 x 2.5 mm²
  • 2 x 4 mm²

Depth

70 mm

Height

85 mm

Width

115.5 mm

Ip degree of protection

IP54

Product certifications

RCM

Electrical durability

12000 cycles

Ambient air temperature for storage

0...60 °C

Standards

AS/NZS 3112

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Material

  • PC (polycarbonate)
  • ABS (acrylonitrile butadiene-styrene)
  • POM (polyoxymethylene)

Others

Package 1 bare product quantity

1

Switch application

on/off switching

Socket-outlet type

single socket-outlet

Network frequency

50 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.7 cm

Package 1 width

11.9 cm

Package 1 length

8.9 cm

Package 1 weight

252.0 g

Unit type of package 2

BB2

Number of units in package 2

30

Package 2 height

30.9 cm

Package 2 width

41.3 cm

Package 2 length

45.9 cm

Package 2 weight

8.56 kg

Unit type of package 3

P06

Number of units in package 3

360

Package 3 height

105.0 cm

Package 3 width

60.0 cm

Package 3 length

80.0 cm

Package 3 weight

111.22 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Halogen content performance

Halogen free plastic parts product

Halogen content performance

Halogen free plastic parts product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

2.1859518829

Global warming ; total life cycle​

2 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
iconic outdoor sockets and switches

Iconic Outdoor Range

Redefining weather-proof products, Iconic Outdoor is the innovative new range which achieves a balance between simplicity of installation, clever technology and consumer friendly aesthetics.

Designed for the residential market, but with electrical contractors in mind, the range is suitable for Zone 2 applications.

Iconic Outdoor sockets have an IP54 protection rating, while the Iconic Outdoor switches have an IP56 protection rating.
