Home ProductsPower Points and SwitchesClipsal - MechanismsIndicator Neon Mechanism

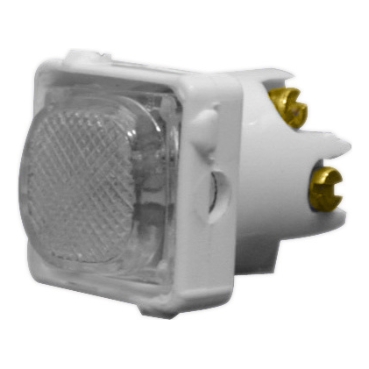

Clipsal - Mechanisms Indicator Neon Mechanism 12V | Amber

Item Number: 30N12-AM

Green 1 PCE 0
Amber 1 PCE 0
Blue 1 PCE 0
Transparent 1 PCE 0
Red 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554054175	AM
5	CRT	9311554225438	AM
500	CAR	29311554106359	AM
1	PCE	9311554054182	BU
5	CRT	9311554054199	BU
500	CAR	29311554106366	BU
1	PCE	9311554054205	GR
5	CRT	9311554225445	GR
500	CAR	29311554106373	GR
1	PCE	9311554054212	RD
5	CRT	9311554225452	RD
500	CAR	29311554106380	RD
1	PCE	9311554054229	TR
5	CRT	9311554225469	TR
500	CAR	29311554106397	TR

Specifications

Design

Range of product	Standard Sundry Series 30
Product brand	Clipsal
Product or component type	indicator module

Physical

Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2103014_V1
Eu rohs directive	Compliant By Exemption

Material

Material	PVC (polyvinyl chloride)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Weee applicability	Finished product
Weee label	N/A
Warranty duration(in months) bmecat	18
	Outside of Europe
Average percentage of recycled plastic content	0 %
Shape	square
Main colour tint	green
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.36 cm
Package 1 width	2.36 cm
Package 1 length	2.8 cm
Package 1 weight	9.13 g
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.00005600632639355273
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0000011779784754869
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	1.9562358629953e-7
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5704
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.00000113475047011417
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.00023338882264607128
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	No
Take-back	No
Warranty (in months)	18

Show all specifications
