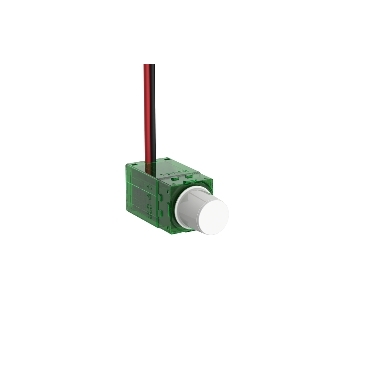

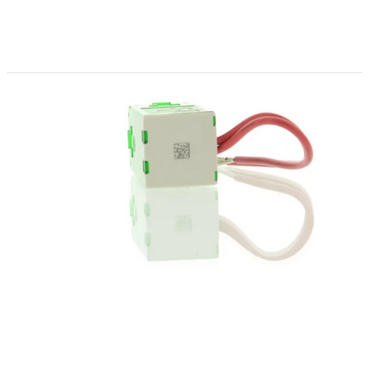

Clipsal Iconic Universal Dimmer Mechanism Rotary 350 W

Clipsal Iconic Universal Dimmer Mechanism Rotary 350 W | Vivid White

Item Number: 42E350RUD2M-VW

A Clipsal Iconic Universal Dimmer mechanism makes it easier than ever to add the convenience of a led dimmer switch to your lighting controls. This light switch has a rotary cap and an adjustable minimum brightness level.

Datasheet

Product Dimensions

Width icon

Width22.5 mm

Height icon

Height22.5 mm

Embedding depth icon

Embedding depth37 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

dimmer

Colour tint

vivid white (VW)

Physical

Device presentation

mechanism

Dimmer type

universal

Type of packing

box

Load type

  • dimmable LED - 350 W - 240 V AC
  • incandescent - 350 W - 240 V AC
  • low voltage halogen lamp with electronic transformer - 350 W - 240 V AC
  • dimmable fluocompact lamp - 150 W - 240 V AC
  • low voltage halogen lamp with iron core transformer - 350 W - 240 V AC
  • dimmable fluorescent - 150 W - 240 V AC

Range compatibility

Clipsal Iconic

Control type

rotary knob

Fixing mode

clip-in

Ambient air temperature for storage

0...60 °C

Dimmer control

315° rotary setting

[ie] rated operational current

1.5 A

[ue] rated operational voltage

220...240 V AC 50 Hz 1 W

Function available

brightness adjustment

Protection type

short-circuit

Ambient air temperature for operation

0...45 °C

Relative humidity

0...90 %

Connections - terminals

flying leads

Height

22.5 mm

Width

22.5 mm

Depth

39 mm

Embedding depth

37 mm

Derating factor

  • 1 devices 350 W without derating
  • 2 devices 250 W with derating factor
  • 3 devices 150 W with derating factor

Standards

AS/NZS 60669.2.1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

  • PC (UL94 V-2): top
  • PC MAS056 (UL94 V-2): bottom

Others

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Package 2 bare product quantity

6

Package 1 bare product quantity

1

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

6.7 cm

Package 1 length

8.7 cm

Package 1 weight

60 g

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

10.2 cm

Package 2 width

13 cm

Package 2 length

15.6 cm

Package 2 weight

494 g

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

4.5289692242

Global warming ; total life cycle​

5 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Other technical guide

  • Environmental Disclosure

  • End of Life Manual

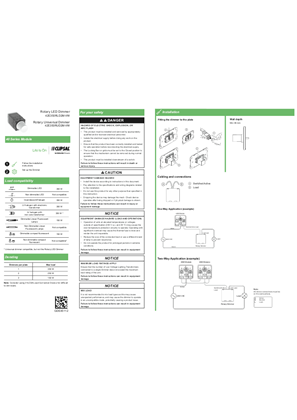

  • Installation Instruction

  • Case Studies

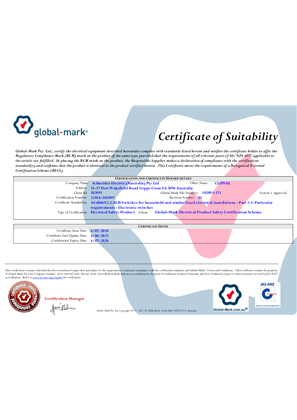

  • Certificates (MSDS)

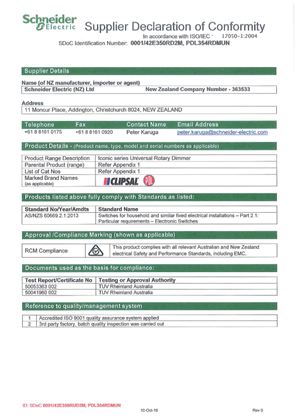

  • Declaration of Conformity

Frequently Asked Questions

I am installing a 2-wire Dimmer, when should I be using a 31CAP or 31LCDA?

Hide Show

The 31CAP and 31LCDA both have separate uses to resolve issues experienced with 2-wire Dimmers.

The 31CAP should be used when minimum load of the device is not being met, this is usually indicated by the load/light, that is controlled by the dimmer, by glowing when it should be off. Adding the 31CAP will increase the load and prevent the load/light from glowing in the off state. Depending on how far off minimum load you are more than one 31CAP may be required.


The 31LCDA should be used in instances where the load/light is flickering constantly, which indicates an issue with compatibility with the 2-wire dimmer used. The 31LCDA resolves these incompatibilities and flickering should then stop, if the flickering is reduced but still present you may need another 31LCDA to completely resolve. No more than 3x 31LCDA’s should be used on one dimmer.
