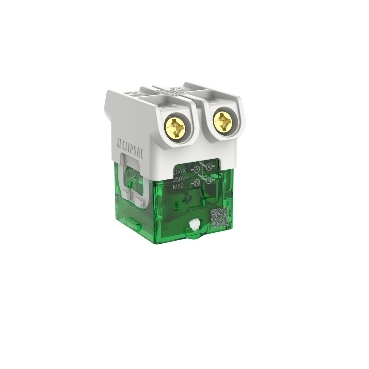

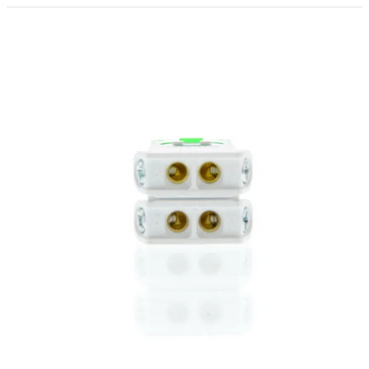

Clipsal Iconic Switch Mechanism 1-Way, Double Pole, 20A, X
Item Number: 40MD20
The Clipsal Iconic Switch Mechanism is a dependable, 1-way light switch designed to provide a single source for powering a 240 V appliance or light or small motor load. It is rated for 20 AX, 250 V power for security and convenience.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Iconic |
| Product or component type | switch |
| Device application |
|
| Aesthetic name | Iconic |
| Colour tint | white |
| Surface treatment | untreated |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 2-pole 1-way |
| Load type |
|
| Quantity per set | set of 20 |
| Device presentation | mechanism |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 20 AX |
| Connections - terminals | screw terminals |
| Fixing mode | by clipping locks |
| Width | 23 mm |
| Height | 23 mm |
| Depth | 32 mm |
| Net weight | 16 g |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-

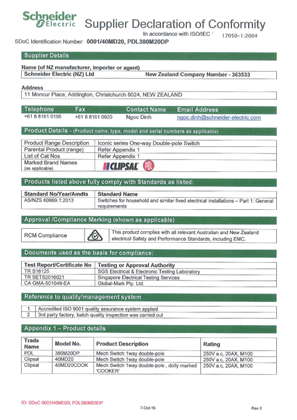

Declaration of Conformity
-
