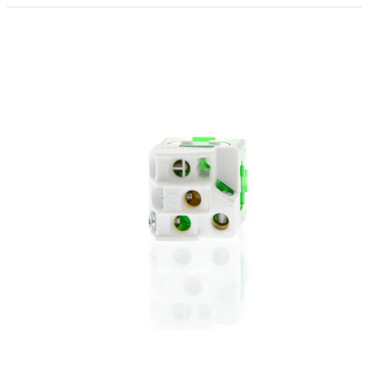

Clipsal Iconic Switch Mechanism 1-Way/2-Way 230/240V, 10AX
Item Number: 40M
The Clipsal Iconic Switch Mechanism is an adjustable light switch designed for reliable performance. The wall switch mechanism is suitable for lighting control for smart home and 2-way switching is ideal for larger spaces. The switch is also suitable for operating small motor loads such as exhaust fans.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Pro Series |
| Product or component type | switch |
| Device application | lighting |
| Aesthetic name | Iconic |
| Colour tint | white |
| Surface treatment | untreated |
Physical
| Number of rocker | 1 |
|---|---|
| Switch function | 1/2-way |
| Load type |
|
| Quantity per set | set of 20 |
| Device presentation | mechanism |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 10 AX |
| Connections - terminals | screw terminals |
| Fixing mode | by clipping locks |
| Width | 23 mm |
| Height | 23 mm |
| Depth | 32 mm |
| Net weight | 16 g |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
