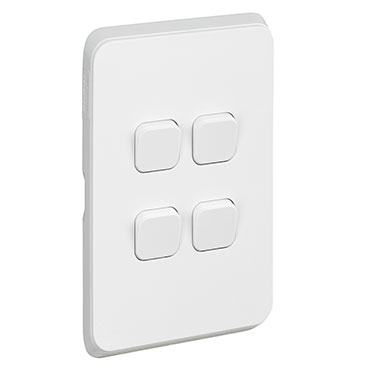

Clipsal Iconic Switch 4 Gang, 10AX,230/240V, Bulk Pack 40 | Extra White
Item Number: 3044VABLK40-XW
This Iconic switch is white in color and belongs to Iconic aesthetic group. The symbol rated current is 10 AX. Its matching mounting box can be recessed into the surface of the wall with flush type. It has 4 rockers. This device is sold in 40 pieces. It is mercury free.
Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range | Iconic |
| Product or component type | switch |
| Device application | switching loads |
| Aesthetic name | Iconic |
| Colour tint | extra white |
| Surface treatment | untreated |
Physical
| Number of rocker | 4 |
|---|---|
| Installation direction | vertical |
| Quantity per set | 40 pieces |
| Device presentation | complete product |
| Device mounting | flush |
| Actuator | rocker |
| [ue] rated operational voltage | 230/240 V |
| Rated current | 10 AX |
| Local signalling | without light indicator |
| Connections - terminals | screw terminals |
| Fixing mode | by screws |
| Width | 78 mm |
| Height | 116 mm |
| Depth | 38 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
