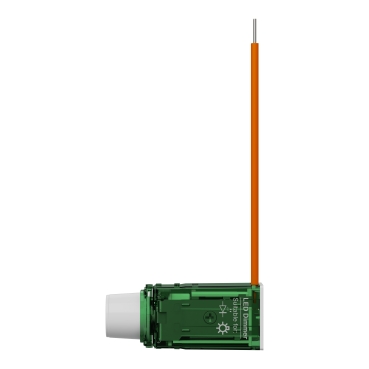

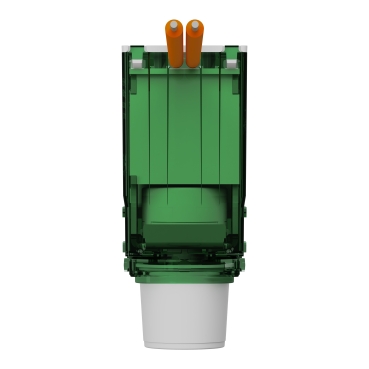

Clipsal Iconic Rotary LED Dimmer Module 150W, 220-240V AC | Vivid White
Item Number: 42ELEDM2-VW
Specifications
Design
Range of product
Range
Product or component type
Colour tint
Surface finish
Physical
Device presentation
Dimmer type
Type of packing
Load type
- dimmable LED - 150 W
- incandescent - 150 W
Fixing mode
Ambient air temperature for storage
Dimmer control
[ue] rated operational voltage
Function available
Protection type
- short-circuit
- overload protection
- thermal protection
Ambient air temperature for operation
Relative humidity
Connections - terminals
Height
Width
Depth
Embedding depth
Standards
Ip degree of protection
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Material
Material
- PC (UL94 V-2): top
- PC MAS056 (UL94 V-2): bottom
Others
Package 1 bare product quantity
Main colour tint
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
Other technical guide
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-

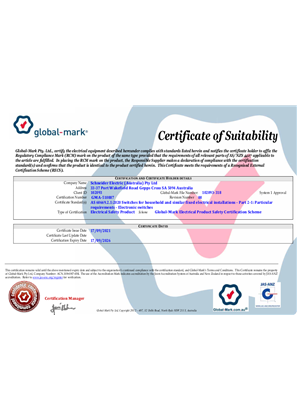

Certificates (MSDS)
Frequently Asked Questions
I am installing a 2-wire Dimmer, when should I be using a 31CAP or 31LCDA?
Hide ShowThe 31CAP and 31LCDA both have separate uses to resolve issues experienced with 2-wire Dimmers.
The 31CAP should be used when minimum load of the device is not being met, this is usually indicated by the load/light, that is controlled by the dimmer, by glowing when it should be off. Adding the 31CAP will increase the load and prevent the load/light from glowing in the off state. Depending on how far off minimum load you are more than one 31CAP may be required.
The 31LCDA should be used in instances where the load/light is flickering constantly, which indicates an issue with compatibility with the 2-wire dimmer used. The 31LCDA resolves these incompatibilities and flickering should then stop, if the flickering is reduced but still present you may need another 31LCDA to completely resolve. No more than 3x 31LCDA’s should be used on one dimmer.
What has been changed with the new Rotary LED dimmers for Iconic range (40 series) and standard range (30 series)?
Hide ShowBoth dimmers have now been improved and introduce the following new features
- New Digital electronic 2-wire trailing edge design for optimum LED dimming performance
- Kick start for faster LED turn on at low settings
- Mechanically adjustable minimum brightness setting
- In-built short circuit, over current and over temperature protection
- Full range smooth LED dimming from 1 – 100% (load dependant)
- Cleaner look with no markings on the control knobs
Please note that the load ratings have changed for the new version. The new 32ELEDM2-WE and 42ELEDM2-VW are rated to 150W to enable enhanced LED optimised control and dimming performance.
