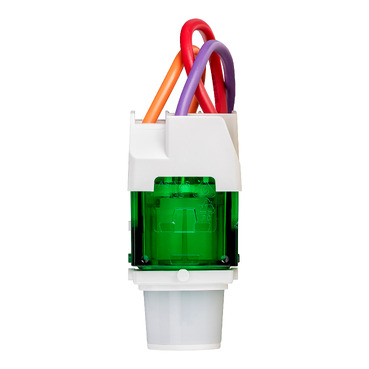

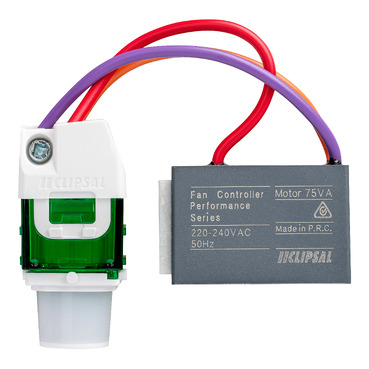

Clipsal Iconic Mech Switch 4-Position, Rotary Switch Off-1-2-3 Capacitor, 75VA, 250V

Home ProductsPower Points and SwitchesClipsal IconicMech Switch

Clipsal Iconic Mech Switch 4-Position, Rotary Switch Off-1-2-3 Capacitor, 75VA, 250V | Vivid White

Item Number: 40CSFM-VW

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Product or component type

selector switch

Range

Clipsal Iconic

Physical

Net weight

0.042 kg

Device presentation

mechanism

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

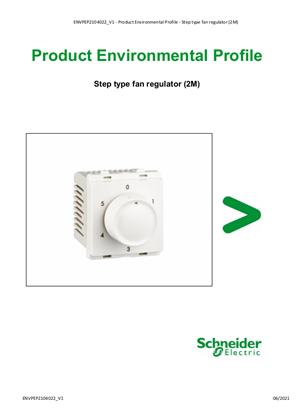

Environmental disclosure

ENVPEP1607003EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Main colour tint

vivid white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.1 cm

Package 1 width

7.3 cm

Package 1 length

10.2 cm

Package 1 weight

50 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Green premium status for reporting

Green Premium product

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0

Global warming ; total life cycle​

1 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Frequently Asked Questions

I have ceiling fans in my home, can you use the 4-position rotary mechanisms with Solis or Solis T?

Hide Show
No – Unfortunately the 4-position rotary mechanisms, 40RSM3 and 40CSFM, do not fit into the Solis range.
If you require ceiling fan control you will need to use the Wiser ZigBee fan controller, 41ECSFWMZ-VW, and either the toggle or push-button Wiser adaptor.

Is there a wiring diagram for the 40CSFM 3 Speed fan controller?

Hide Show
There is a wiring diagram available. Please see below.

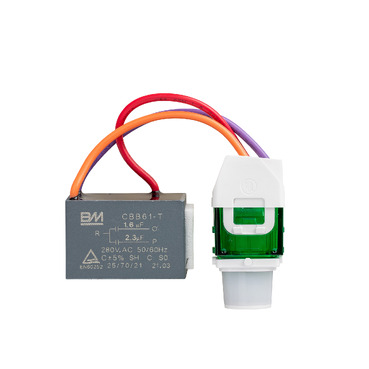

The capacitor values are, Orange = 1.6μF and Purple = 2.3μF.

For further information please visit https://www.clipsal.com/products/detail?CatNo=40CSFM&tab-document-1=0

Schneider Electric (Australia) Pty Ltd reserves the right to change specifications, modify designs and discontinue items without incurring
obligation and whilst every effort is made to ensure that descriptions, specifications and other information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be liable for any error therein.
