Clipsal Iconic HDMI 1.4 Female Connecto Straight | Translucent

Item Number: 40HDMIS-TN

Translucent 1 PCE 0

The Clipsal Iconic HDMI Adaptor is an invaluable component for building your smart home network and integrating audio and visual applications. Straight HDMI socket outlet has a modern look and stable connection performance to deliver superior sound and visuals.

Where To Buy

Datasheet

Download

Product Dimensions

Width23 mm

Height23 mm

Depth36 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554792459	TN
10	CRT	9311554792817	TN
120	CAR	19311554792456	TN

Specifications

Design

Range	Clipsal Iconic
Product or component type	female connector
Colour tint	translucent

Physical

Connector type	HDMI
Device presentation	mechanism
Fixing mode	clip-in
Quantity per set	set of 10
Device mounting	flush
Socket number	1
Range compatibility	Clipsal Iconic
Height	23 mm
Width	23 mm
Depth	36 mm
Net weight	0.011 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes

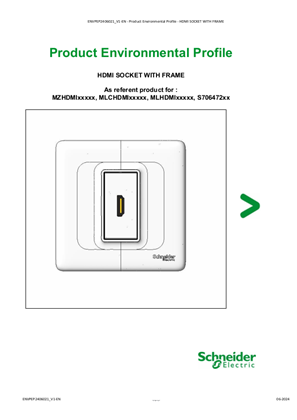

Environmental disclosure	ENVPEP2406021EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Material	PC (polycarbonate)
Contacts material	gold plated

Others

Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Package 2 bare product quantity	10
Package 1 bare product quantity	1
Legacy weee scope	In
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	7.6 cm
Package 1 length	12.7 cm
Package 1 weight	12 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	132 cm
Package 2 width	100 cm
Package 2 length	160 cm
Package 2 weight	207 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0713032255267058
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0147974361511558
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00158452377193531
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1.51199681916597
Carbon footprint of the use phase [b2, b3, b4, b6]	2 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0255415642086896
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.62522356882446
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
