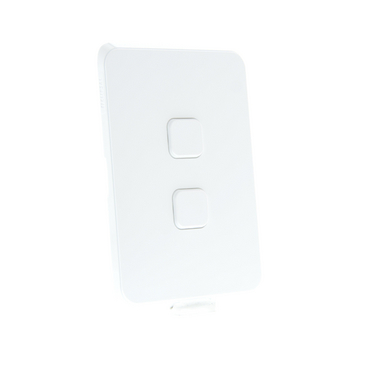

Clipsal Iconic Gridplate and Skin 2 Gang, Vertical/Horizontal | Extra White
Item Number: 3042VH-XW
Iconic sets the new standard for electrical accessories with both style and smarts, and the Clipsal Iconic 2 Gang Grid and Skin is no exception. Suitable for use in either a vertical or horizontal position, the Grid and Skin mount flush to the wall using innovative Clipsal Iconic design.
Specifications
Design
| Range | Iconic |
|---|---|
| Aesthetic name | Iconic |
| Product or component type | skin |
| Colour tint | vivid white (VW) |
| Product destination | switch |
| Surface treatment | untreated |
Physical
| Type of packing | polybag |
|---|---|
| Quantity per set | set of 20 |
| Range compatibility | Clipsal Iconic switch |
| Device mounting | flush |
| Number of rocker | 2 |
| Installation direction | horizontal/vertical |
| Fixing mode | screw |
| Height | 120 mm |
| Width | 78 mm |
| Depth | 7.5 mm |
| Net weight | 0.04 kg |
| Ambient air temperature for storage | 0...60 °C |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
