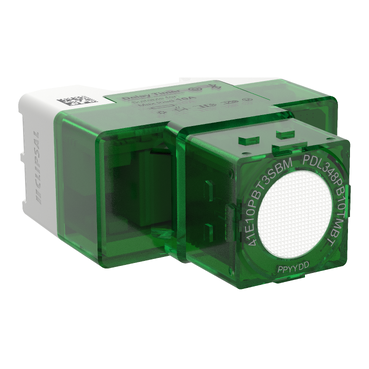

Clipsal Iconic Electronic Time Delay Switch Mechanism Push Button with BLE & ControlLink 3-Wire, 10A

Home ProductsPower Points and SwitchesClipsal IconicElectronic Time Delay Switch Mechanism Push Button with BLE & ControlLink

Clipsal Iconic Electronic Time Delay Switch Mechanism Push Button with BLE & ControlLink 3-Wire, 10A | VW

Item Number: 41E10PBT3SBM-VW

The Clipsal Iconic Electronic Time Delay Switch Mechanism is packed with features to make your smart home truly connected. The 3-wire electronic timer switch can be configured using the Wiser Room app from your phone or tablet to control tasks with ease.

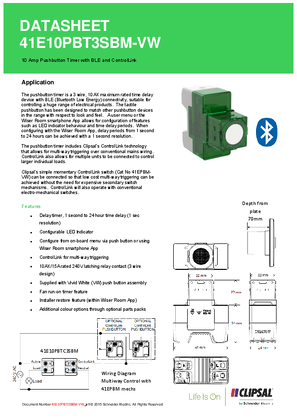

Datasheet

Product Dimensions

Width icon

Width48 mm

Height icon

Height24 mm

Embedding depth icon

Embedding depth52 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

timer

Colour tint

vivid white

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Range compatibility

Clipsal Iconic cover plate

Device mounting

flush

Actuator

push-button

Fixing mode

clip-in

Connections - terminals

4 screw terminals

Type of packing

box

Sale per indivisible quantity

1

Remote control type

push-button|Wiser room application

[ie] rated operational current

10 A

[ue] rated operational voltage

240 V AC 50 Hz

Load type

LED lighting 10 A|incandescent lamp 10 A|low voltage halogen lamp with iron core transformer 10 A|low voltage halogen lamp with electronic transformer 10 A|fluorescent lamp 10 A|compact fluorescent lamp 10 A|resistive 15 A

Derating factor

1 devices10 A without derating|2 devices7.5 A with derating factor|3 devices6.5 A with derating factor

Operating distance

30 m

Control signal type

ControlLink

Connections - terminals

screw terminals

Number of terminals

4

Wiring configuration

3 wires with neutral

Screwdriver shape

square drive no 1 (SQ1)|Philips

Local signalling

LED indicator (warm white)

Height

24 mm

Width

48 mm

Depth

55 mm

Embedding depth

52 mm

Standards

AS/NZS 60669.2.1

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

0...90 %

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

PC (UL94 V-2): top|PC MAS056 (UL94 V-2): bottom

Others

Package 1 bare product quantity

1

Time delay

1...86400 s (24 h) adjustable

Power range

> 0 W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.3 cm

Package 1 width

7 cm

Package 1 length

9 cm

Package 1 weight

92 g
