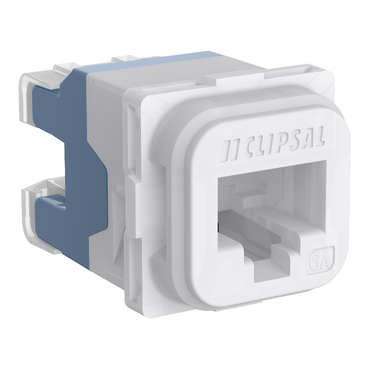

Clipsal Iconic Data Socket Category 6,A U/UTP RJ45, Unshielded | Translucent
Item Number: 40RJ45SMA6A-TN
Enjoy the convenience of a connected smart home with superior networking components from Actassi. This RJ45 modular socket outlet provides superior performance and is rated as category 6A, a high-end phone jack for improved band width to handle big applications.
Datasheet
Close
Specifications
Design
| Range | Actassi |
|---|---|
| Product or component type | RJ45 network socket |
| Colour tint |
|
| Colour code | 568 A/B |
| Product compatibility | RJ45 plug |
| Warranty | 18 months |
Physical
| Device presentation | two piece design |
|---|---|
| Quantity per set | set of 1 |
| [in] rated current | 1.5 A at 25 °C |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Insulation resistance | initial insulation resistance: >= 500 MOhm at 100 V DC |
| Awg gauge | AWG 23...AWG 24 |
| Mechanical durability | 750 cycles |
| Coupling attenuation |
|
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Pulling force | 50 N during 60 s |
| Transverse conversion loss |
|
| Tool type |
|
| Cable outer diameter | 0.9...1.1 mm |
| Cable shielding type | UTP |
| Communication network category | 6A |
| Communication network type | 10GBASE-T |
| Communication port protocol |
|
| Transmission frequency | 0...500 MHz |
| Type of footprint | 40 mech |
| Height | 22 mm |
| Length | 36 mm |
| Width | 16 mm |
| Ambient air temperature for operation | -40...70 °C |
| Climatic withstand | 40/070/21 (21 days) |
| Product certifications | RCM |
| Standards |
|
| Environmental disclosure | ENVPEP1806006EN |
| Eu rohs directive | Not Applicable/Out of Scope |
