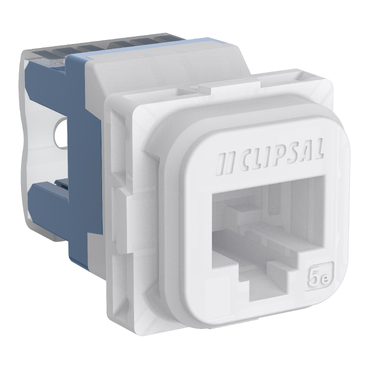

Clipsal Iconic Data Socket Category 5,E RJ45, Unshielded

Home ProductsPower Points and SwitchesClipsal IconicData Socket

Clipsal Iconic Data Socket Category 5,E RJ45, Unshielded | Translucent

Item Number: 40RJ45SMA5-TN

The Clipsal Iconic Modular Socket is a VoIP phone jack with a two-piece design. This phone socket outlet is ideal for both commercial and residential applications.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

RJ45 network socket

Colour tint

stuffer cap: transparent (ABS + PC)|IDC cover: blue (ABS + PC)|connector housing: translucent (ABS + PC)

Colour code

568 A/B

Product compatibility

RJ45 plug

Warranty

18 months

Physical

Device presentation

two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Insulation resistance

initial insulation resistance: >= 500 MOhm at 100 V DC

Awg gauge

AWG 23...AWG 24

Mechanical durability

750 cycles

Coupling attenuation

>= 35 dB at 30-100 MHz|>= 75 - 20 x log(f) dB at 100-1000 MHz

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Pulling force

50 N during 60 s

Transverse conversion loss

>= 50 dB|>= 68 - 20 x log(f) dB at 1-100000 kHz

Tool type

punch down tool|quick termination tool

Cable outer diameter

0.9...1.4 mm

Cable shielding type

UTP

Communication network category

5e

Communication network type

1000BASE-T

Communication port protocol

VoIP (Voice IP)

Transmission frequency

0...100 MHz

Type of footprint

40 mech

Height

31 mm

Length

27 mm

Width

16 mm

Ambient air temperature for operation

-40...70 °C

Climatic withstand

40/070/21 (21 days)

Product certifications

RCM

Standards

ANSI/TIA-568-C.2|AS/NZS 3080|AS/CA S008|IEC 60603-7-2|ISO/IEC 11801

Eu rohs directive

Not applicable, out of EU RoHS legal scope

Environmental disclosure

ENVPEP1806006EN

Others

Commercial status history

SESA301466 | Fri Jun 28 11:32:00 EDT 2024 | From Import Local | From 19 to 19

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2 cm

Package 1 width

14.7 cm

Package 1 length

8.5 cm

Package 1 weight

0.01 kg
