Cap, Iconic, for push button, silver shadow

Crowne 1 PCE 0
Silver Shadow 1 PCE 0
Silver 1 PCE 0

Home ProductsPower Points and SwitchesClipsal IconicCap

Clipsal Iconic Cap for push button | Silver Shadow

Item Number: S40PBC-SH

Crowne 1 PCE 0
Silver Shadow 1 PCE 0
Silver 1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width23.6 mm

Height23.6 mm

Depth8.1 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606488092086	SH
100	BB1	13606488092083	SH
400	CAR	23606488092080	SH

Specifications

Design

Range	Iconic
Product or component type	cap
Colour tint	crowne
Product destination	push-button
Surface finish	matt
Surface treatment	untreated

Physical

Device mounting	flush
Height	23.6 mm
Width	23.6 mm
Depth	8.1 mm
Fixing mode	clip-in
Environmental disclosure	ENVPEP2108010_V1
Eu rohs directive	Compliant

Material

Material	plastic
Material	ABS (acrylonitrile butadiene-styrene)

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Package 2 bare product quantity	100
Package 3 bare product quantity	400
Package 4 bare product quantity	58000
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Main colour tint	crowne
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.5 cm
Package 1 width	2.7 cm
Package 1 length	2.7 cm
Package 1 weight	12.53 g
Unit type of package 2	BB1
Number of units in package 2	100
Package 2 height	7 cm
Package 2 width	11.9 cm
Package 2 length	14.6 cm
Package 2 weight	1.303 kg
Unit type of package 3	CAR
Number of units in package 3	400
Package 3 height	17.5 cm
Package 3 width	16 cm
Package 3 length	26 cm
Package 3 weight	5.36 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.4041000000000006
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.007470400000000001
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0013465
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.9133125
Carbon footprint of the use phase [b2, b3, b4, b6]	0.9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.02479599999999999
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Take-back	N/A
Removable battery	N/A
Total lifecycle carbon footprint	4.351025399999999
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A

Show all specifications

Documents & downloads

All
Technical Drawing
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

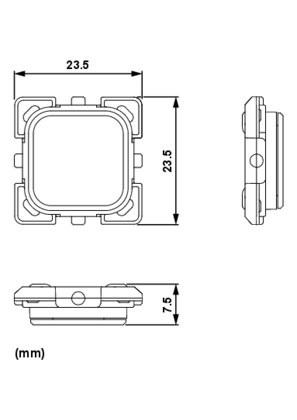

S40PBC__Dimension Drawing
