Clipsal Iconic Essence USB Charging Station Skin 3 Gang | Arctic White

Item Number: E3043USBC-AW

Skin Only

Arctic White 1 PCE 0
Ash Grey 1 PCE 0

This Iconic Essence 3 gang horizontal shelf skin fits the 3043HSUSB charger grid plate. Equipped with a clever clip-on system, you can easily change skins, once the initial grid plate has been installed by a qualified electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width85.0 mm

Height131.0 mm

Depth8.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489549541	AW
1	PCE	3606489549558	AG

Specifications

Design

Range	Clipsal Iconic
Aesthetic name	Iconic Essence
Product or component type	cover frame
Colour tint	arctic white (AW)
Product destination	USB charger

Physical

Type of packing	polybag
Quantity per set	set of 4
Range compatibility	Clipsal Iconic USB charger
Device mounting	flush
Number of power socket outlets	3
Installation direction	horizontal
Fixing mode	clip-on
Height	131.0 mm
Width	85.0 mm
Depth	8.5 mm
Net weight	0.03 kg
Ambient air temperature for storage	0...45 °C
Ambient air temperature for operation	0...45 °C
Relative humidity	10...95 %
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2403023EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Material	birch timber: cover frame

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Average percentage of recycled plastic content	0 %
Weee label	N/A
Warranty duration(in months) bmecat	18
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Main colour tint	arctic white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	1.5 cm
Package 1 width	8.46 cm
Package 1 length	12.98 cm
Package 1 weight	32.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.254983447
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.009174857
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.006506804
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.075080719
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.345745828
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Brochure_Clipsal Iconic Range Overview_998-22131437_LMA-AU

VERSION

1.3

DATE

12 Mar 2026

REVISION

1.3

DOWNLOAD (ZIP) 52.8 MB

ZIP

Clipsal_Selection_Chart_Book

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

ICONIC DOUBLE SWITCH POWER POINT

VERSION

2.0

DATE

10 Dec 2025

REVISION

2.0

DOWNLOAD (ZIP) 334.1 KB

ZIP

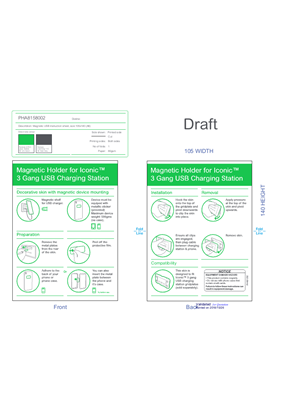

Magnetic Holder For Iconic 3 Gang USB Charging Station

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB

ZIP

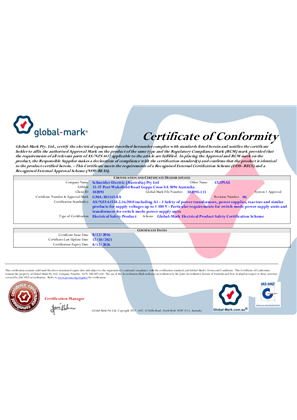

RCM Certificate of Approval (Conformity)
