Classic C2000 Series Switched Socket Outlet Classic, 250V, 10A, Circuit identification

Classic C2000 Series Switched Socket Outlet Classic, 250V, 10A, Circuit identification | White Electric

Item Number: C2025I-WE

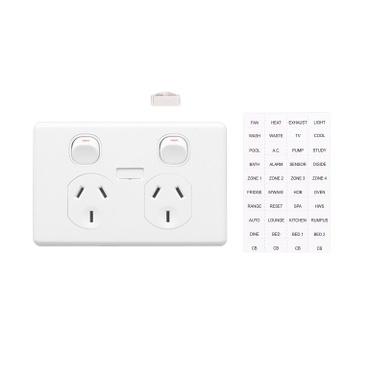

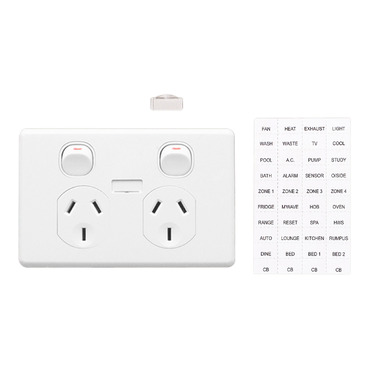

The gloss-finish Classic C2000 Twin Switched Socket is rated 250V, 10A for standard appliances. The outlet features provision for circuit identification, so you'll always be able to tell which circuit the outlet is connected to.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Sockets

C2000 Socket features

  • Green Premium Product
  • Available in single, double and quad models, in vertical or horizontal format
  • Low profile design clip-on cover
  • Four corner mounting points
  • Options such as extra switches, safety shutters and neons
  • Manufactured in accordance with AS/NZS3100, AS/NZS3112 and AS/NZS3133
  • Recommended for residential and commercial environments.

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.3 cm

Package 1 width

8.7 cm

Package 1 length

14.5 cm

Package 1 weight

106 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

124 cm

Package 2 width

146 cm

Package 2 length

164 cm

Package 2 weight

1.31 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

8.0648219386
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Product Brochures

  • Other technical guide

  • Environmental Disclosure

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity

Office

Classic C2000 range

The contemporary styling and flexibility of the C2000 range have made it Clipsal’s most popular range of switches and power points.

The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.

The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
