Classic C2000 Series Switch Grid Plate and Cover 5 Gang, Vertical Mount | White Electric
Item Number: C2035VI-WE

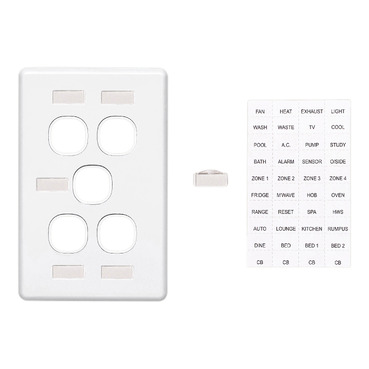

Give yourself switching flexibility with the Classic C2000 Vertically Mounted 5 Gang Switch Grid Plate and Cover. The mechanisms are not included with this product, so you can choose which ones you install with it. The cover features identification windows so you'll always know which switch does what.
Datasheet
C2000 Switch Cover Features
- The cover hides all mounting holes and is easily removed to enable you to paint right up to the edge of the grid plate without having to worry about marking the cover.
- Hardwearing, UV stabilised surface
Specifications
Design
| Range of product | Classic Series C2000 |
|---|---|
| Product brand | Clipsal |
| Surface finish | glossy |
| Product destination | switch |
Physical
| Provided equipment | label window |
|---|---|
| Fixing mode | by screws |
| Marking | without marking |
| Mounting position | vertical |
| Number of gangs | 5 gangs |
| Standards | AS/NZS 60669.1 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Other technical guide
-
Environmental Disclosure
-
Specification Guide
-
Declaration of Conformity (Sustainability)
Classic C2000 Range
The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.
The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.
The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
