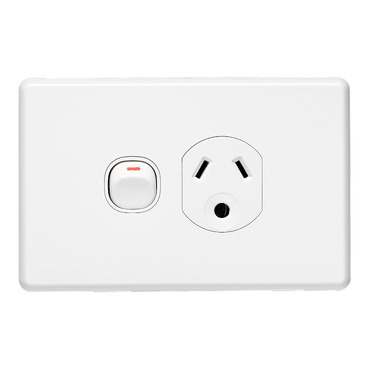

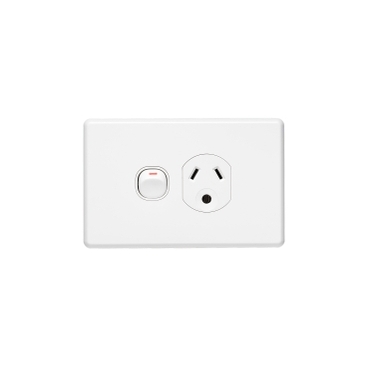

Classic C2000 Series Single Switch Socket Outlet Classic, 250V, 10A, Round Earth Pin | White Electric
Item Number: C2015L-WE
Socket outlet for horizontal installations. Single switched socket with round earth pin for lighting. Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.
Datasheet
C2000 Socket features
- Green Premium Product
- Available in single, double and quad models, in vertical or horizontal format
- Low profile design clip-on cover
- Four corner mounting points
- Options such as extra switches, safety shutters and neons
- Manufactured in accordance with AS/NZS3100, AS/NZS3112 and AS/NZS3133
- Recommended for residential and commercial environments.
Specifications
Design
| Range of product | Classic Series C2000 |
|---|---|
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 28 mm |
| Length | 116 mm |
| Width | 76 mm |
| Fixing center | 84 mm |
| Standards | AS/NZS 3112 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Other technical guide
-
Environmental Disclosure
-
Specification Guide
-
Certificates (MSDS)
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
C2015L-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2015L-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2015L-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2015L-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2015L-CM EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2015L-CM EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Classic C2000 range
The contemporary styling and flexibility of the C2000 range have made it Clipsal’s most popular range of switches and power points.
The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.
The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
