Classic C2000 Series Power Outlet Twin with 1 x 30USBAM | White Electric

Item Number: C2025USBC-WE

White Electric 1 PCE 0

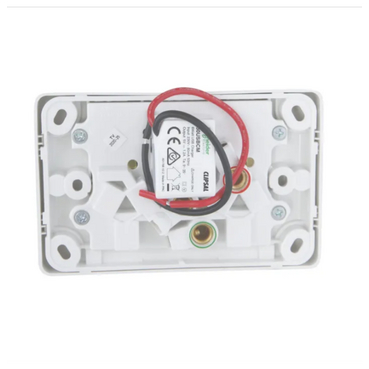

Socket outlet for horizontal installations. Twin switched socket with single 1.2 A USB charger. Clipsal C2000. Colour: White Electric

Where To Buy

Datasheet

Download

Product Dimensions

Width76 mm

Height116 mm

Depth30 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554780975	WE

Specifications

Design

Product or component type	switched socket
Colour tint	white (WE)
Surface finish	glossy

Physical

Device presentation	complete product
Outlet poles configuration	2P + E with shutter
Outlet standard	Australian
Device mounting	flush
Number of power socket outlets	2
Number of rocker	2
Outlet standard description	with earthing contact
Ground lug position	straight 180° position
Fixing mode	by screw
Installation direction	horizontal
Type of packing	polybag
Quantity per set	set of 10
Sale per indivisible quantity	1
Rated current	10 A at 250 V AC 50 Hz
Height	116 mm
Width	76 mm
Depth	30 mm
Net weight	0.109 kg
Standards	AS/NZS 3112
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2403023_V1
Eu rohs directive	Compliant By Exemption

Material

Device composition	1 USB charger 1.2 A
Material	PC (polycarbonate): socket-outlet

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Main colour tint	white electric
Outlet standard deviation	Australian/New Zealand
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.1 cm
Package 1 width	9.1 cm
Package 1 length	11.7 cm
Package 1 weight	0.196 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	38 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.9993884615384614
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.03749253846153846
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.017702946153846152
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	35.089999999999996
Carbon footprint of the use phase [b2, b3, b4, b6]	35 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.43990692307692303
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	37.58449086923077
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
