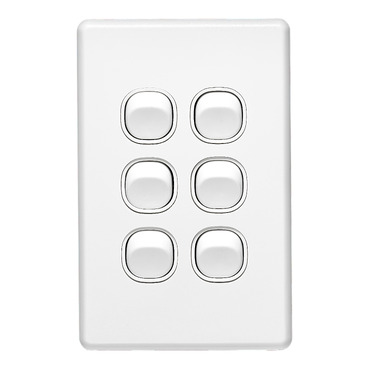

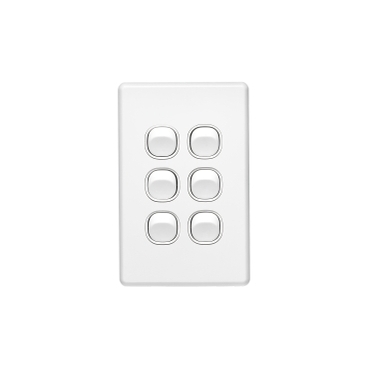

Classic C2000 Series Flush Switch 6 Gang, 250VAC, 10A, Standard, Vertical | Cream
Item Number: C2036VA-CM
Switch assembly. C2000 cover plate, grid and switch mechanism are included. Suitable for 6-gang vertical installations. Assembled with plate. Clipsal C2000. Colour: White Electric Rated current: 10AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.
Datasheet
C2000 light switch features
The Clipsal Classic C2000 light switches are widely used in residential and commercial properties across Australia for their durability and easy maintenance, making them a popular choice for electricians.
- These switches feature a 30M mechanism allowing for 1 or 2-way switching, along with a convenient loop terminal.
- Standard switches can be mounted vertically or horizontally, with the flexibility to change during installation by simply removing the mechanism and turning it 90°.
- The switches come complete with a white clip-on cover and 2 installation screws.
- One to six gang standard wall switches and one to four gang architrave switches.
- Impact-resistant gridplates with a hardwearing, UV-stabilized surface
Specifications
Design
| Range of product | Classic Series C2000 |
|---|---|
| Product brand | Clipsal |
Physical
| Device presentation | basic element with full cover plate and grid |
|---|---|
| Device mounting | flush |
| Number of rocker | 6 |
| Local signalling | without |
| [ue] rated operational voltage | 250 V AC |
| Rated current | 10 A |
| Marking | without marking |
| Fixing mode | by screws |
| Actuator | rocker |
| Standards | AS/NZS 60669.1 |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
CAD Files and Packs
-
Other technical guide
-
Environmental Disclosure
-
Specification Guide
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
C2036VA-BA EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-BA EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-CM EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-CM EU RoHS Declaration
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
C2036VA-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Classic C2000 range
The contemporary styling and flexibility of the C2000 range have made it Clipsal’s most popular range of switches and power points.
The C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.
The extensive product range also includes light dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
