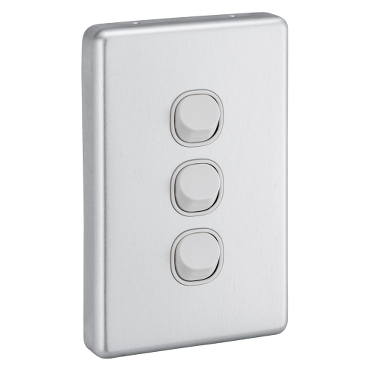

Classic C2000 Series, Flush Switch, 3 Gang, 250VAC, 10A, Vertical Grid Brushed Aluminium
Item Number: C2033VAWEGD-BA
Datasheet
Close
Specifications
Design
Range of product
Classic Series C2000
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Device presentation
basic element with full cover plate and grid
Device mounting
flush
Number of rocker
3
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
without marking
Fixing mode
by screws
Actuator
rocker
Switch function
series
Standards
AS/NZS 3080-96
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.102 kg
