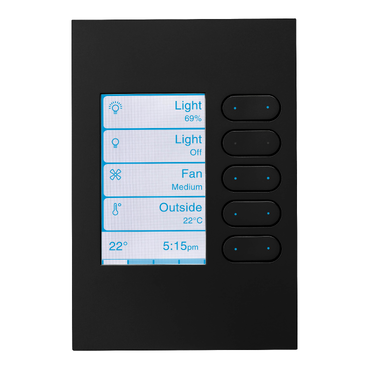

C-Bus eDLT Wall Plate Saturn Zen, Enhanced Dynamic Labelling Technology, 5 Key, A Series

C-Bus eDLT Wall Plate Saturn Zen, Enhanced Dynamic Labelling Technology, 5 Key, A Series | ZB

Item Number: R5045EDLB-ZB

Datasheet

Product Dimensions

Width icon

Width83 mm

Height icon

Height123 mm

Embedding depth icon

Embedding depth23.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

C-Bus

Product brand

Clipsal

Product or component type

wall plate

Device application

control

Colour

cover plate: zen black|grid: black

Product compatibility

LAN cable Cat. 5e

Sustainable offer status

Green Premium product

Physical

Provided equipment

mounting plate|flying lead

Control type

5 x push-button dual-action

Local signalling

status: LED (tri-colour) on push-button

Function of module

proximity sensor monitoring wake-up

Communication port protocol

C-Bus - 2 wires

Connector type

mini USB port (rear)|socket (rear) for C-Bus

Function available

firmware update by USB

Clamping connection capacity

0.2...1.5 mm²

Fixing mode

by screws

Mounting support

wall

Width

83 mm

Height

123 mm

Depth

35 mm

Embedding depth

23.5 mm

Ip degree of protection

IP20

Ambient air temperature for operation

5...45 °C

Product certifications

CE|RCM

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120702EN

Circularity profile

ENVEOLI1207002EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Product name

C-Bus Saturn Zen

Switch application

lighting|timer|audio|blind control|fan speed control|scene control|on/off switching|shutter control|dimming up/down control|page navigation

Local display

backlit LCD display

Display type

colour TFT display

Display size

2.8 inch

Messages display capacity

up to 4 pages

Information displayed

load type|temperature|power|date|time|operating mode

Number of outputs

16 in 4 page option|5 in 1 page option

[us] rated supply voltage

15...36 V: DC

Maximum supply current

32 mA

User language

multi-language

Electrical connection

flying lead

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

11 cm

Package 1 length

15.5 cm

Package 1 weight

299 g

Unit type of package 2

CAR

Number of units in package 2

8

Package 2 height

20.6 cm

Package 2 width

22.5 cm

Package 2 length

33 cm

Package 2 weight

2.1 kg

Unit type of package 3

P12

Number of units in package 3

400

Package 3 height

50 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

108 kg
