Specifications
Design
| Range of product | PDL 600 Designer Series |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
| Colour code | RAL 9010 |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | indicator light |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Height | 118 mm |
| Width | 74 mm |
| Fixing center | 84 mm |
| Standards |
|
Documents & downloads
Filter items
-
All
-

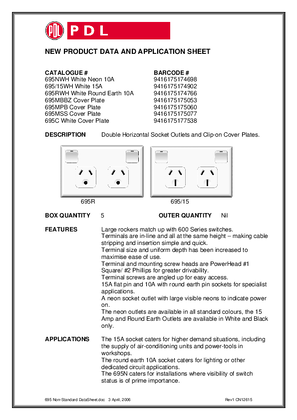

Product Brochures
-
Other technical guide
-
Installation Instruction
-

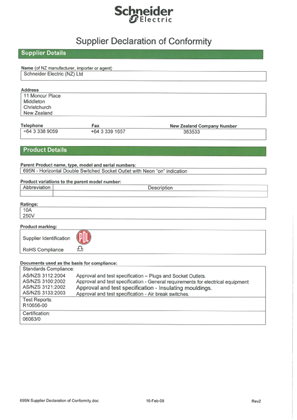

Declaration of Conformity
ZIP

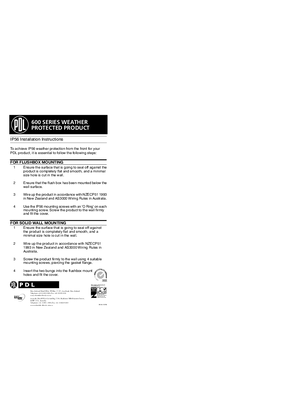

Installation Instructions - IP56 600 Series Weather Protected Product, 412700
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 383.2 KB
ZIP
Installation Instructions - Switchsocket Without Neon and Switchsocket with Neon Neons Wired, Power On, 1440936
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 343.9 KB
ZIP
Installation Instructions - Switch Plug Without Neons and Switch Plug with Neons, 14400643/1
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 361.4 KB
