Clipsal - 600 Series Switched Socket and 2 Extra Switch and 2 Extra Switch | White
Item Number: 694XX-WH

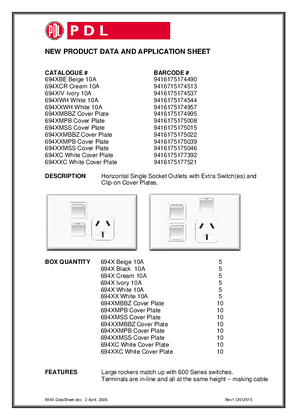

Datasheet
Close
Specifications
Design
Range of product
PDL 600 Designer Series
Product or component type
switched socket
Product brand
Clipsal
Colour code
RAL 9010
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- rocker
- switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Height
118 mm
Width
74 mm
Fixing center
84 mm
Standards
- AS 3100
- AS 3133
- AS 3112
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.128 kg
