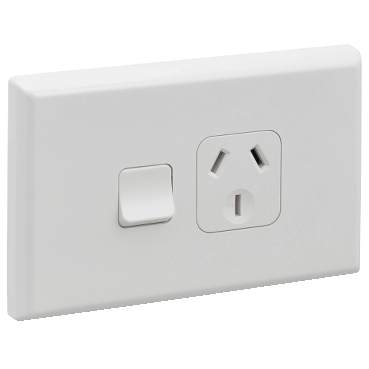

Clipsal - 600 Series General Power Outlet Single 10A Double Pole | White
Item Number: 694DP-WH
Socket outlet assembly for horizontal installations. Double-pole socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

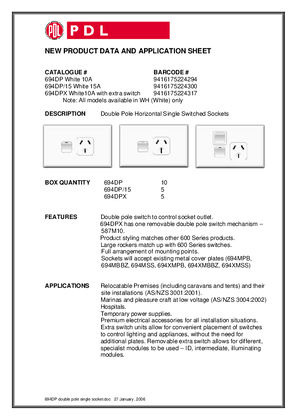

Datasheet
Specifications
Design
| Range of product | PDL 600 Designer Series |
|---|---|
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Height | 74 mm |
| Width | 118 mm |
| Fixing center | 84 mm |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
