Datasheet
Specifications
Design
| Range of product | PDL 600 Designer Series |
|---|---|
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 230...240 V AC |
| [in] rated current | 10 A |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Other technical guide
-
Installation Instruction
-

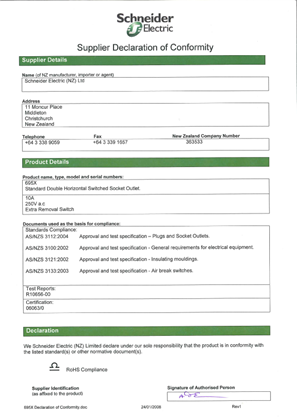

Declaration of Conformity
-
Declaration of Conformity (Sustainability)
ZIP

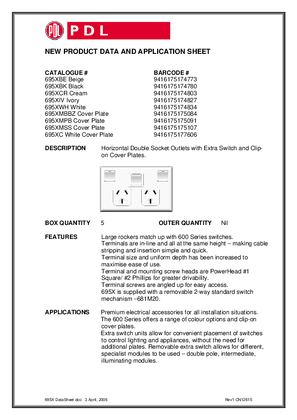

Product Data Sheet - 695X 695XM 695XC 600 Series Horizontal Double Socket with Extra Switch and Clip-on Cover Plates, 12615
VERSION
1.0
DATE
20 May 2024
REVISION
1.0
DOWNLOAD (ZIP) 73.7 KB
ZIP
Product Data Sheet - 692 692X 695 695X Double Vertical and Horzontal Socket Outlets with Circuit Identification and RCD Protection Indication, 12615
VERSION
1.0
DATE
20 May 2024
REVISION
1.0
DOWNLOAD (ZIP) 220.2 KB
ZIP
Installation Instructions - IP56 600 Series Weather Protected Product, 412700
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 383.2 KB
ZIP
Installation Instructions - Switchsocket Without Neon and Switchsocket with Neon Neons Wired, Power On, 1440936
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 343.9 KB
ZIP
Installation Instructions - Switch Plug Without Neons and Switch Plug with Neons, 14400643/1
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 361.4 KB
