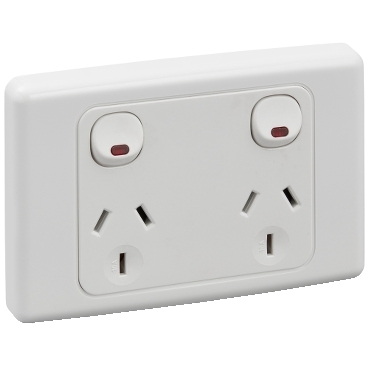

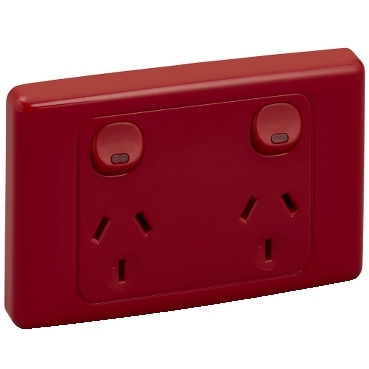

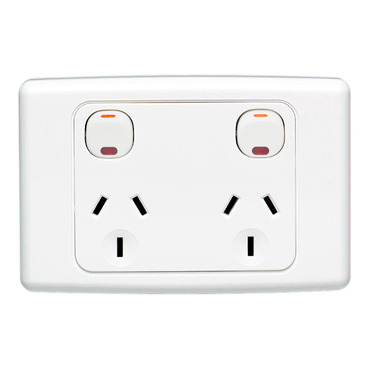

2000 Series Twin Switch Socket Outlet 250V, 10A, 2 Pole

2000 Series Twin Switch Socket Outlet 250V, 10A, 2 Pole | WE

Item Number: 2025DN-WE

See from a distance when the outlets are turned on with the Clipsal 2000 Series Twin Switched Socket with Neons. The 2 pole 250V, 10A switch is suitable for a wide range of applications, and the gloss finish makes it easy to keep clean.

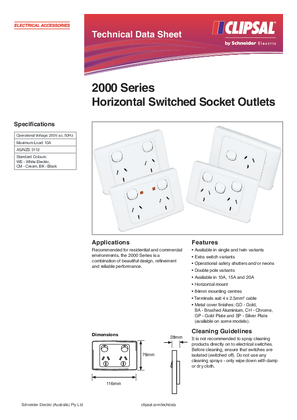

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

indicator light

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.7 cm

Package 1 width

7.6 cm

Package 1 length

11.7 cm

Package 1 weight

99.0 g
Show all specifications
