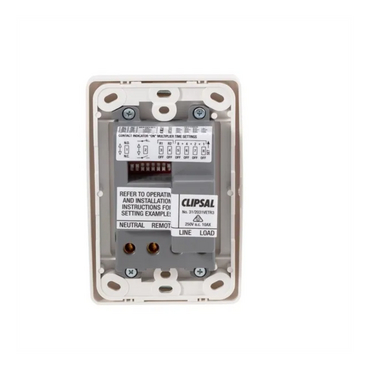

2000 Series Time Delay Switch 1 Gang, 3 Wire, 10A | White Electric
Item Number: 2031VETR3-WE
Timer that is designed to automatically turn off lights after a preset period. The device has a 3-wire design which requires a neutral connection. Clipsal 2000 Series. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Product or component type | time switch |
|---|---|
| Product brand | Clipsal |
| Range of product | Series 2000 |
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Device mounting | flush |
| [ue] rated operational voltage | 220...240 V AC |
| Rated current | 10 A |
| Fixing mode | by screws |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1308010_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Installation Instruction
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
-
BIM Model
2031VETR3-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2031VETR3-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2031VETR3-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2031VETR3-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2031VETR3-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2031VETR3-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Range
The contemporary styling and flexibility of the 2000 Series and C2000 range have made it Clipsal’s most popular range of switches and power points.
2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
