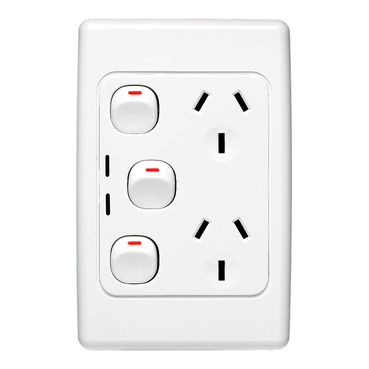

2000 Series Switched Socket Twin Vertical Extra Switch Neon | White Electric
Item Number: 2025VXN-WE
For situations where you need two outlets, as well as an additional switch for turning on lights, an exhaust fan, or heating, the Clipsal 2000 Series Twin Vertical Switched Socket with Extra Switch has you covered. The outlet features neon indicators, so you can see from a distance when the outlet is on.
Datasheet
Features
- Gloss surface finish
- Choice of single, double and automatically switched power points
- Added extras such as neons, safety shutters and extra switches allow for even more versatility
- Safety shutters help prevent accidental contact with live terminals within the power point
- Option of included leakage and surge protection
Specifications
Design
| Range of product | Series 2000 |
|---|---|
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | indicator light |
| Mounting position | vertical |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 28 mm |
| Length | 116 mm |
| Width | 76 mm |
| Fixing center | 84 mm |
| Standards |
|
Material
| Material | plastic |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
BIM Model
Range
The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.
2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
