2000 Series Switched Socket Twin Vertical 10A, Shutter

2000 Series Switched Socket Twin Vertical 10A, Shutter | WE

Item Number: 2025VS-WE

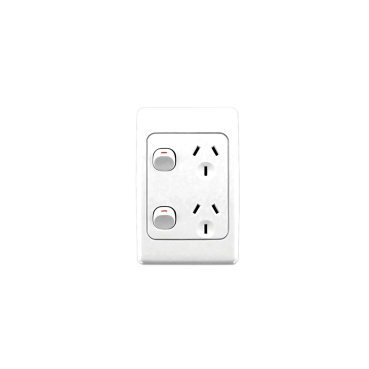

Give yourself two outlets for your appliances with the Clipsal 2000 Series Twin Vertical Switched Socket. The outlet features safety shutters which provide extra protection against electric shock. The outlet is rated 10A, 250V and has a gloss finish.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product or component type

switched socket

Product brand

Clipsal

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

28 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

7.6 cm

Package 1 length

11.6 cm

Package 1 weight

0.12 kg

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

12.2 cm

Package 2 width

14.1 cm

Package 2 length

16.1 cm

Package 2 weight

1.2 kg

Unit type of package 3

CAR

Number of units in package 3

100

Package 3 height

25.4 cm

Package 3 width

34.8 cm

Package 3 length

44.5 cm

Package 3 weight

12 kg
