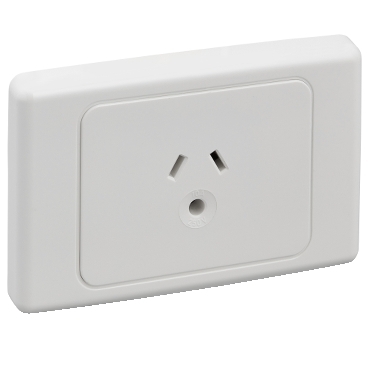

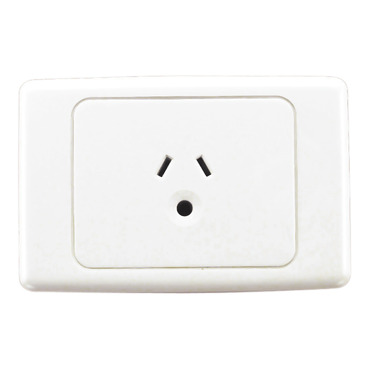

2000 Series Socket Outlet 250VAC, 10A, Round Earth Pin

2000 Series Socket Outlet 250VAC, 10A, Round Earth Pin | WE

Item Number: 2010L-WE

For use with lighting appliances featuring a round-pin plug, the Clipsal 2000 Series Automatic outlet offers safe, reliable power. The outlet is rated 10A, 250V and has a gloss white finish, making it suitable for use in a wide variety of environments and decors.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product or component type

socket-outlet

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 1

Marking

without marking

Local signalling

indicator light

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

31 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Cover type

full cover plate

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

7.5 cm

Package 1 length

11.5 cm

Package 1 weight

90 g
