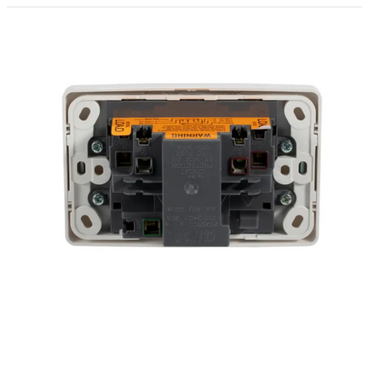

2000 Series RCD Protected Twin Switch Socket Outlet 250V, 10A, 2 Pole, 10mA RCD | White Electric
Item Number: 2025RCD10-WE
Earth leakage protected power points could save someone you love from being electrocuted, as well as protecting your expensive electronic equipment from being damaged. The Clipsal 2000 Series RCD Protected Twin Switched Socket also features a reset/test button to provide peace of mind and ease of use.
Datasheet
Features
- Gloss surface finish
- Choice of single, double and automatically switched power points
- Added extras such as neons, safety shutters and extra switches allow for even more versatility
- Safety shutters help prevent accidental contact with live terminals within the power point
- Option of included leakage and surge protection
Specifications
Design
| Range of product |
|
|---|---|
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 2 gangs |
| Pin number | 3 |
| Number of power socket outlets | 2 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 47 mm |
| Length | 116 mm |
| Width | 76 mm |
| Fixing center | 84 mm |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
Installation Instruction
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
-
BIM Model
A Great Gang of Surrounds
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
2000 Series - Functionality, Flexibility and Fashion
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Clipsal Lifesavers in Electrical Protection - 22498
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
2025RCD10-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-RD REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
2025RCD10-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Range
The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.
2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
