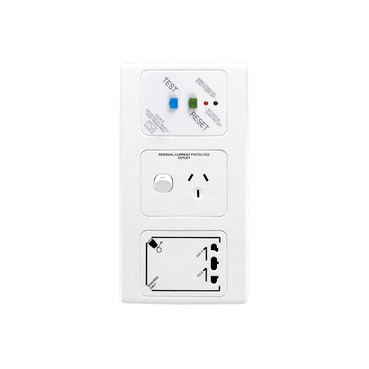

2000 Series RCD Protected Socket Outlet 250V, 20A, Shaver, 30mA, Vertical | White Electric
Item Number: 2727VRC30-WE
Designed for use in hotel environments, the Clipsal 2000 Series Shaver outlet with RCD gives you safe and reliable switching, as well as added protection. The RCD cuts power to the circuit before leakage of 30mA occurs. The vertical switch cluster also features test and reset buttons, as well as a standard rocker switch.
Datasheet
Close
Specifications
Design
| Range of product | Series 2000 |
|---|---|
| Product brand | Clipsal |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Local signalling | without light indicator |
| Mounting position | vertical |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 20 A |
| Depth | 57 mm |
| Length | 219 mm |
| Width | 116 mm |
| Fixing center | 84 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
