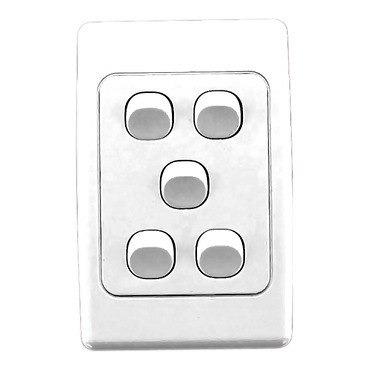

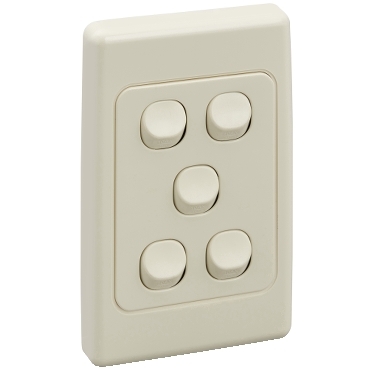

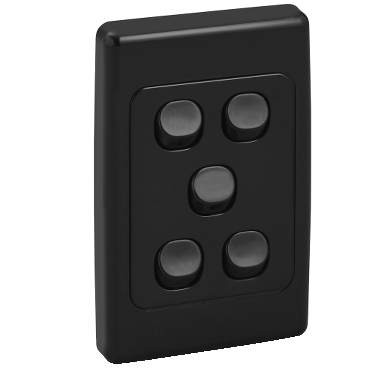

2000 Series Flush Switch 5 Gang, 250VAC, 10A, Standard, Vertical

2000 Series Flush Switch 5 Gang, 250VAC, 10A, Standard, Vertical | WE

Item Number: 2035VA-WE

When you need switching for five circuits, the Clipsal 2000 Series 5 Gang Vertical switch has you covered. The switch is designed to be installed vertically and it sits flush against the wall, offering functionality without intrusion into the rest of your decor.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate and grid

Device mounting

flush

Number of rocker

5

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

2-way|1-way

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.4 cm

Package 1 width

7.6 cm

Package 1 length

11.6 cm

Package 1 weight

122 g
Show all specifications
